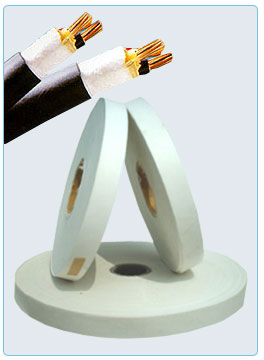

Flexible Polyester Film Electrical Insulation Materials Nonwoven for DMD Tape
The non woven made by 100% polyester. The surface and thickness is uniformity. It can be widely used in electrical insulation materials( DMD, DMD prepreg material), mica tape, insulation varnished cloth, insulation cable and so on.
| Item number | Thickness(mm) | Base weight(g/㎡) | Strength | elongation |
| J0035 | 0.035±0.05 | 21±2gsm | MD≥50N/5cm CD≥10N/5cm | LMD=5-10% LCD=5-10% |
| J0050 | 0.05±0.05 | 31±2gsm | MD≥80N/5cm CD≥20N/5cm | LMD=5-10% LCD=5-10% |
| J0075 | 0.075±0.05 | 45±2gsm | MD≥100N/5cm CD≥25N/5cm | LMD=5-10% LCD=5-10% |
| J0090 | 0.09±0.05 | 60±2gsm | MD≥120N/5cm CD≥30N/5cm | LMD=5-10% LCD=5-10% |
| J0150 | 0.15±0.05 | 90±2gsm | MD≥150N/5cm CD≥40N/5cm | LMD=5-10% LCD=5-10% |
Product Specifications
| Weight Range (GSM) | 15-60 gsm |
|---|---|
| Width (cm) | up to 210cm |
| Material | polyester |
| Minimum Order Quantity | 500kg |
| Delivery Time | 20 days |
| Available Colors | natural_white |
Product Features
High Quality
Premium materials and strict quality control ensure consistent product performance.
Customizable
Tailored solutions to meet your specific requirements for width, weight, and material composition.
Certified
Products meet international standards with certifications including OEKO-TEX and GRS.
