What fabric is best for an air filter?

Breathing dirty air harms your health. But many standard air filters clog quickly or fail to trap the smallest, most dangerous particles, leaving you unprotected in your own home or car.

The best air filters use a composite material. The core is a high-efficiency filtration layer like meltblown fabric, which is supported by a stiff, porous polyester non-woven fabric. This support layer provides structure without using chemical glues, ensuring optimal airflow and performance.

When I started my career in fiber materials, filters were a major area of innovation. It became clear to me that an air filter is not just a single piece of material. It’s an engineered system with at least two distinct parts working together: the part that does the filtering and the part that holds it all together. People often focus only on the filtration layer, but without a proper structural backbone, even the best filter media is useless. My company has spent years perfecting the non-woven fabric that serves as this critical backbone.

What is the job of the support fabric in a filter?

A filter's main job is to catch fine dust. But the delicate material that traps these particles is often flimsy. Without a strong frame, it would simply collapse, blocking air and failing completely.

The support fabric acts as the filter’s skeleton. It provides the stiffness and strength needed to hold the fragile filtration layer in place. This allows the filter to be pleated, creating a huge surface area to trap dirt while maintaining its shape and proper airflow.

Think of a highly efficient filter material like meltblown fabric. It's made of incredibly fine microfibers, which is why it can trap microscopic particles like pollen, dust mites, and bacteria. But this web of microfibers is very delicate and has almost no structural integrity on its own—it's like a sheet of cotton candy. This is where our support fabric comes in. We create a stiff but porous polyester non-woven that gets laminated to the meltblown layer.

This creates a composite material that is strong enough to be handled and, most importantly, to be pleated. Pleating is the process of folding the material into a series of accordion-like folds. This simple trick can increase the filter's surface area by 10 to 20 times. More surface area means the filter can trap a lot more dirt before it gets clogged, which extends its life and improves its efficiency. The pleats also need to stay evenly spaced to ensure air flows through the entire filter, not just a small part of it. Our support fabric provides the rigidity to hold these pleats perfectly in place. Without it, the filter simply wouldn't work.

How is a high-quality filter support fabric made?

You assume all support fabrics are similar. But the wrong one can restrict airflow or, even worse, release harmful chemicals into the air you breathe. The manufacturing process is what sets a safe, effective material apart.

We create a superior support fabric using a dry-laid thermal bonding process with polyester staple fibers. We use heat and pressure—not chemical glues—to fuse the fibers together. This creates a stiff, strong, and porous fabric without any added formaldehyde or other harmful substances.

My background in chemical fibers taught me that how you make something is just as important as what you make it with. To create a filter support fabric that is both high-performing and safe, we focus on two things: the raw materials and the production method.

The Right Fiber Recipe

It all starts with selecting the right polyester staple fibers. We use a strategic blend of fibers with different thicknesses (or "deniers"). Thicker fibers provide excellent stiffness and resilience, creating a strong backbone that holds the pleats firmly. Finer fibers can be blended in to help with pre-filtration, catching larger dust particles before they even reach the main filtration layer. By adjusting this fiber recipe, we can precisely control the final fabric's properties to meet different performance requirements.

A Pure and Simple Process

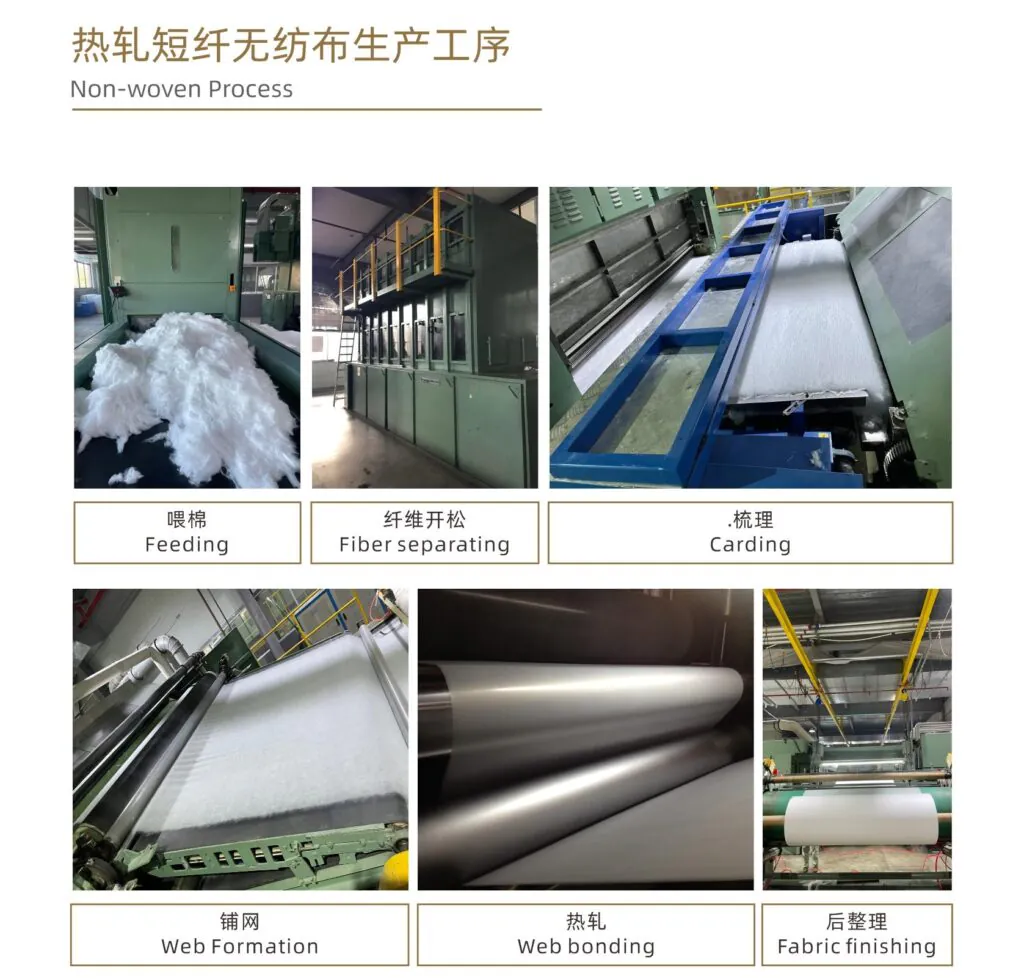

Our manufacturing process is completely dry and free of chemical binders. First, we use a carding machine to open up and align the polyester fibers into a uniform web. Then, this web passes through large, heated rollers. The heat and pressure melt the fibers just enough to fuse them together at their intersections. This is called thermal bonding. This method creates a fabric that achieves its stiffness and strength naturally, from the interlocking fibers themselves. Because we use no chemical glues, there is no risk of formaldehyde or other volatile organic compounds (VOCs) being released into your home or car's air stream.

How does this fabric adapt to different filter needs?

Your product might need a filter for a home furnace, a car cabin, or an industrial cleanroom. Each application has unique demands, and a one-size-fits-all fabric is rarely the best solution.

This thermally-bonded polyester fabric is incredibly versatile. It can be used alone for basic filtration or easily bonded with advanced media like meltblown, activated carbon, or PTFE membranes. We can also apply treatments like antibacterial or water-repellent coatings to meet specific functional requirements.

The ultimate goal for my company is to provide a material that solves a customer's problem. The versatility of our non-woven support fabric allows it to be the foundation for a huge range of filter products.

A Platform for Performance

Our support fabric is rarely the final product; it's the platform upon which a final filter is built.

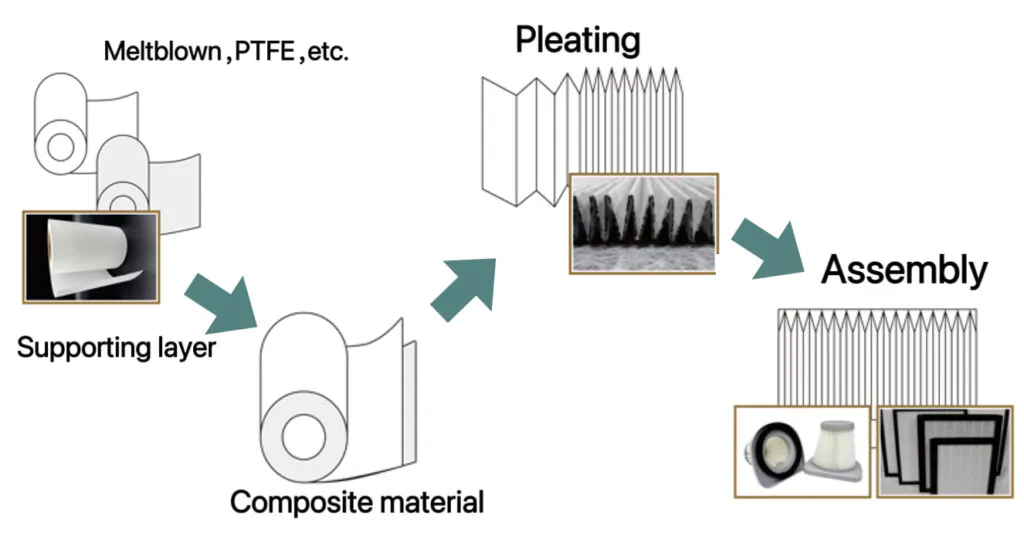

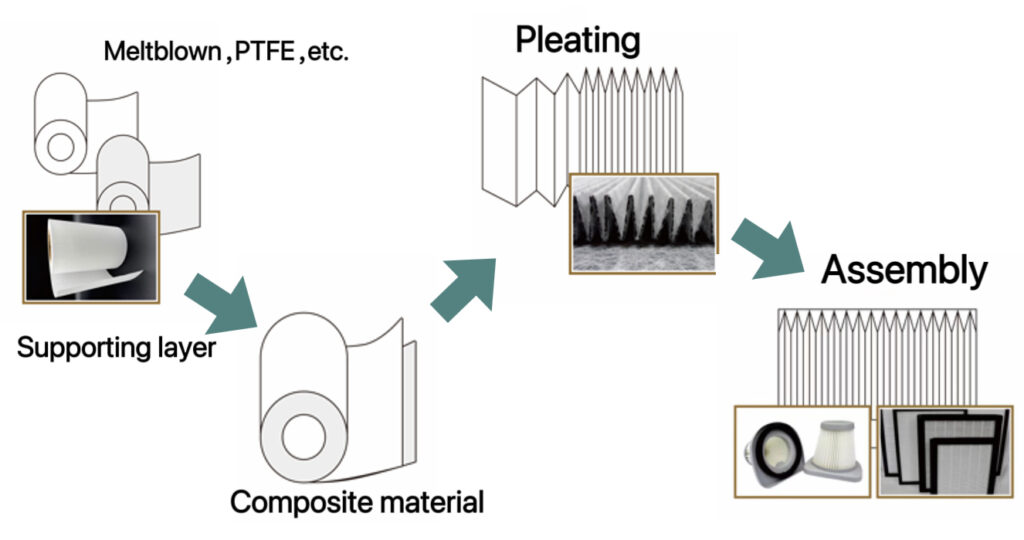

• Composite Materials: Its primary use is being laminated to other materials. Filter manufacturers bond it to meltblown fabric for high-efficiency particulate air (HEPA) filters, to activated carbon layers for odor and gas removal, or even to advanced stretched PTFE membranes for industrial applications. Our fabric provides the essential structural integrity for all of them.
• Standalone Pleating: In some cases, for less demanding applications like pre-filters, our fabric can be pleated on its own. It's tough enough to provide a basic level of filtration by itself.
• Custom Treatments: The needs of a filter go beyond just trapping dust. We can apply various functional finishes to the fabric in a secondary step. For example, for HVAC systems in humid climates, we can add an antimicrobial or anti-mite treatment to prevent mold and bacteria from growing on the filter. For certain industrial uses, a water-repellent finish might be required.

This adaptability is what makes it such a valuable component for any filter manufacturer.

Feature	Benefit to the Filter	Common Application
Glue-Free Production	Safe, no formaldehyde or VOCs	Home HVAC, Car Cabin Filters
Adjustable Fiber Blend	Tunable stiffness and filtration level	Custom Filter Designs
Composite Compatibility	Works with meltblown, carbon, etc.	HEPA and Odor-Control Filters
Post-Treatment Options	Antibacterial, anti-mite, etc.	Hospitals, Cleanrooms, Humid Environments

Conclusion

The best air filter uses a system: a fine filtration layer for capturing dirt and a strong, glue-free polyester non-woven support fabric for structure, airflow, and safety.
